Coffee Packaging Guide
Choose a coffee bag by the actual roasted coffee, target fill weight and bag geometry—not by a nominal capacity label alone.
The Short Answer
A bag described as “250 g” or “12 oz” is not a universal set of dimensions. Roasted coffee density, whole bean or ground format, roast profile, bag style, zipper position, valve position and desired headspace all affect the final size. Use a nominal fill weight to shortlist a format, then approve the dimensions with a physical fill test using the actual product.
Start With Four Inputs
Target net weight
State the declared fill weight and whether the pack will contain whole bean or ground coffee.
Actual coffee
Provide the roast level, grind format and a representative product sample when possible because bulk density changes the occupied volume.
Bag style
Flat bottom, side gusset and stand-up pouches distribute the same volume differently and create different shelf proportions.
Required features

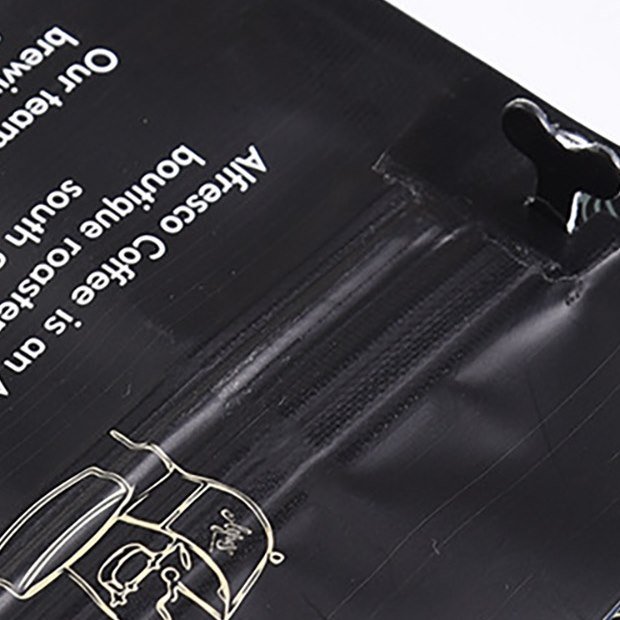

Confirm the zipper, one-way degassing valve, tear notch, seal area and the headspace needed by the filling process.
Common Stand-Up Pouch Reference Sizes
Use W × H + Bottom Gusset notation. The final number identifies the expanded bottom-gusset dimension.
| Nominal fill reference | Common stand-up pouch reference size | Buyer validation |
|---|---|---|
| 250 g | 12 × 20 + 6 cm W × H + Bottom Gusset | Filled height, zipper access, valve position and shelf proportions |
| 500 g | 14 × 22 + 6 cm W × H + Bottom Gusset | Product density, headspace, stability and filled dimensions |
| 1 kg | 16 × 24 + 6 cm W × H + Bottom Gusset | Bottom support, seal performance, carton fit and handling |
How Bag Style Changes the Fit

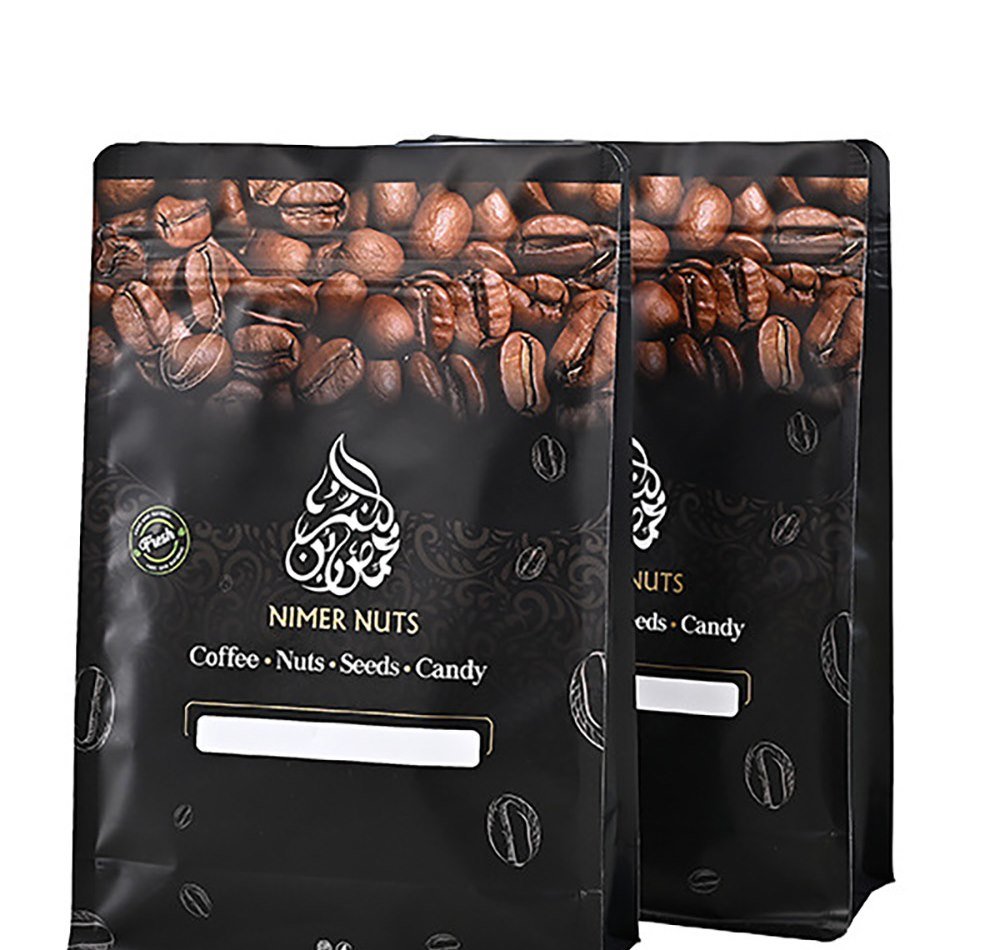

Flat bottom
A structured base and defined side panels create a stable presentation. It is useful when shelf presence and a box-like shape are priorities.
Side gusset
Side gussets expand as coffee is filled and are widely used for classic coffee packaging. The top closure and seal plan must be confirmed with the filling method.
Stand-up pouch
A bottom gusset supports a lighter, flexible retail format. Zipper position and usable internal volume should be checked during the fill test.
Measure and trial-fill your coffee bag
Use a real sample and the actual whole bean or ground coffee. Measure the empty bag without stretching it, then trial-fill the target net weight. Keep the zipper usable and reserve the top area required by your sealing process.
For a stand-up pouch, record W × H + Bottom Gusset. Bottom Gusset means the expanded bottom-gusset dimension: +6 cm does not mean 6 cm on each side. Do not apply the stand-up reference sizes above to flat-bottom or side-gusset formats.
Use the blank record for handwritten notes after printing. It does not collect or save information online.
| Record | Your measured result or note |
|---|---|
| Sample and format | Sample reference: ____ ; stand-up / flat bottom / side gusset / other: ____ . |
| Empty bag dimensions | Width: ____ ; height: ____ ; units: ____ . For stand-up only, expanded bottom gusset: ____ . For other styles, attach a dimensioned reference. |
| Usable top-seal area | Area reserved for the intended seal: ____ ; zipper and valve positions: ____ . Confirm with the filling and sealing setup. |
| Actual contents | Whole bean / ground: ____ ; coffee and roast reference: ____ ; target net weight: ____ ; actual weight filled: ____ . |
| After filling | Headspace: ____ ; zipper access: ____ ; valve clearance: ____ ; standing stability and panel appearance: ____ . |
| Packing check | Filling method: ____ ; carton fit and handling observations: ____ ; changes needed: ____ . |
| Outcome | Not tested / needs adjustment / sample fit accepted: ____ ; test date: ____ ; sample reference for review: ____ . |
A completed fit check is not a shelf-life or seal-strength test. Record any adjustment, repeat the fill check with the revised sample and agree final dimensions and artwork before production. Blank fields are not verified specifications.
Send your recorded measurements with the size inquiry details below. If you have no sample, share your target weight and preferred format first; do not infer a guaranteed capacity from dimensions alone.
What to Send With a Size Inquiry
- Target net weight and sales market
- Whole bean or ground coffee
- Roast type or a representative sample
- Preferred flat bottom, side gusset or stand-up format
- Zipper and one-way degassing valve requirements
- Filling method, top-seal method and required headspace
- Artwork or a reference pack
- Order quantity and destination
For a product-specific quotation, compare the main custom coffee bag options or send the details through the inquiry form.
Technical Sources
These official references support the general technical and regulatory principles in this guide. Project documents must still match the selected material, supplier and conditions of use.
Buyer FAQ
Frequently Asked Questions
Is a 250 g coffee bag always the same size?
No. A 250 g label describes target fill weight, not universal dimensions. Coffee density, bag style, zipper, valve and desired headspace affect the finished size, so the selected dimensions should be confirmed with the actual coffee.
Should I test a coffee bag with water?
No. Water does not behave like roasted coffee. Use the actual whole bean or ground product at the target net weight for a meaningful fill test.
Which coffee bag style uses space most efficiently?
There is no single best style for every project. Flat bottom, side gusset and stand-up formats distribute volume differently. The right choice depends on shelf presentation, filling, closure, carton fit and target cost.
Does a valve change the required bag size?
It can affect the usable panel area and feature layout. Valve position, zipper position, top seal and artwork clearances should be checked on the approved dieline.
What information is needed before confirming dimensions?
Share the target fill weight, actual coffee format, preferred bag style, required features, filling method, order quantity, destination and any existing bag or artwork reference.
Validate Your Coffee Bag Size
Send the coffee type, target fill weight, bag style, features, quantity and destination. A physical fill test should confirm the final dimensions.
